Draw wire sensor-SGD

Product Description

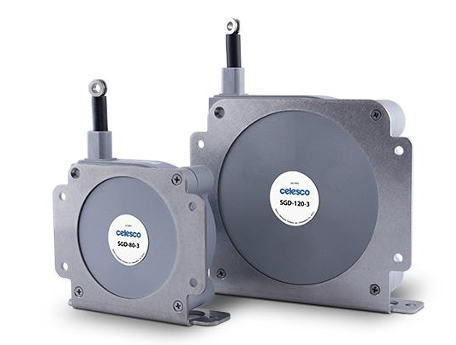

Suited for IP67 (wet) environments, the SGD provides a user-selectable 4-20mA or 0-10VDC absolute linear position signal over an 80-inch or 120 inch full stroke range option. Signal selection is simply made by connecting the appropriate pins on the included connector or selecting the proper wires in the optional cordset. Additionally, this sensor is constructed with a rugged polycarbonate body, an extremely durable spring-loaded stainless steel measuring cable and a mounting bracket that lets the customer mount this sensor in just about any direction.

Key Features

Compact Medium Range Cord Displacement Transducers
Absolute Displacement
80, 120 inch travel ranges available
Polycarbonate Housing
IP67

Information & Quotation
Request a quotation today or leave your details to recieve moreinformation from one of our experts
Price Inquiry REQUEST MORE
Specification
Product Type FeaturesUnit
Cable Actuated Position Sensor Product Type
SG Series String Pots
Signal Characteristics
Output Signal
0 – 10 VDC, 4 – 20 mA
Body Features
Cable Actuated Position Sensor Housing Material
Polycarbonate + Stainless Mounting
Bracket
Usage Conditions
Operating Temperature Range℃-18 - 71
Operating Temperature Range°F-0 - 160
Operation/Application
Resolution
Continuous Analog mm
Industry Standards
IP Rating
IP67
Hazardous Area Approval
No
Other
Full Stroke Ranges
3048 mm[120 in]
Cable Actuated Position Sensor Accuracy
0.35 % of FS
Repeatability
0.02 % of FS
Encoder Drive
No
Measuring Cable
Nylon-Coated Stainless Steel
