PRODUCTS Sensors MEMS static response acceleration sensor

MEMS static response acceleration sensor

MEMS sensors (microelectromechanical systems) is a multidisciplinary cross-cutting cutting-edge research field developed on the basis of microelectronics technology. Compared with traditional sensors, it has the characteristics of small size, light weight, low cost, low power consumption, high reliability, suitable for mass production, easy to integrate and realize intelligence.

Learn More Price Inquiry

Filters

Hide Filters

Reset Filters

Range

Nonlinearity

±0.7%FSO

±1%FSO

Output


                            Amplified Voltage

                            IEPE

                            Piezoresistive

Sensitivity


                            0.05-0.2mV/g

                            0.05-0.12mV/g

                            0.075mV/g

                            0.3-0.6mV/g

                            0.3mV/g

                            0.6-0.12mV/g

                            0.6-1.2mV/g

                            0.6mV/g

                            0.12-0.3mV/g

                            0.15mV/g

                            1.2-3mV/g

                            1.5mV/g

                            4mV/g

                            6mV/g

                            10mV/g

                            20mV/g

                            25mV/g

                            40mV/g

                            50mV/g

                            67mV/g

                            100mV/g

                            200mV/g

                            250mV/g

                            400mV/g

                            500mV/g

                            1000mV/g

                            2500mV/g

Axial

Triaxial

Uniaxial

You are filtering:

Products Found（12）

Tile

List

MEMS static response acceleration sensor
52F

26 kHz resonance frequency

5000g Overload protection
Weight <1.0 g

Datesheet Go to Product

MEMS static response acceleration sensor
52F

Piezoresistive MEMS crash test accelerometers with full bridge outputs

Datesheet Go to Product

Range

±50g

±100g

±200g

±500g±2000g

±6000g

Nonlinearity

±1%FSO

Output

Piezoresistive

Sensitivity

1.2-3mV/g

0.6-1.2mV/g

0.3-0.6mV/g

0.12-0.3mV/g

0.05-0.2mV/g

MEMS static response acceleration sensor
1201&1201F

Range: ±50 g to ±2,000 g
2-10 Vdc excitation voltage
Overload shock protection: 10,000 g

Datesheet Go to Product

MEMS static response acceleration sensor
1201&1201F

Automotive safety test acceleration sensor with optimal amount of internal gas damping for excellent shock survivability.

Datesheet Go to Product

Range

±50g

±100g

±200g

±500g

±1000g

Nonlinearity

±1%FSO

Output

Piezoresistive

Sensitivity

1.2-3mV/g

0.6-1.2mV/g

0.3-0.6mV/g

0.12-0.3mV/g

MEMS static response acceleration sensor
P84AS

IEPE Excitation
Fast shock recovery
Range: 2~500g

Datesheet Go to Product

MEMS static response acceleration sensor
P84AS

an IEPE single axial accelerometer with static and dynamic response

Datesheet Go to Product

Range

±2g

±5g

±10g

±20g

±50g

±100g

±200g

±500g

Nonlinearity

±1%FSO

Output

IEPE

Sensitivity

2500mV/g

1000mV/g

500mV/g

250mV/g

100mV/g

50mV/g

25mV/g

10mV/g

MEMS static response acceleration sensor
P83AT

High frequency response: 0~7kHz
Excellent temperature stability
Range: 2~500g

Datesheet Go to Product

MEMS static response acceleration sensor
P83AT

Static Response MEMS Variable Capacitance Accelerometer, High Frequency, Ultra Low Noise

Datesheet Go to Product

Range

±2g

±5g

±10g

±20g

±30g

±50g

±100g

±500g

Nonlinearity

±1%FSO

Output

Amplified Voltage

Sensitivity

1000mV/g

400mV/g

200mV/g

100mV/g

67mV/g

40mV/g

20mV/g

4mV/g

MEMS static response acceleration sensor
P82AT

5Kg Impact Limit
Static Response
Range: 2~200g

Datesheet Go to Product

MEMS static response acceleration sensor
P82AT

Highly sensitive accelerometers for simultaneous measurement of perpendicular triaxial acceleration and low-frequency vibration.

Datesheet Go to Product

Range

±2g

±5g

±10g

±200g

Nonlinearity

±1%FSO

Output

Amplified Voltage

Sensitivity

1000mV/g

400mV/g

200mV/g

10mV/g

MEMS static response acceleration sensor
P81AS

5Kg impact resistance
High frequency response: 0~7kHz
Range: 2~500g

Datesheet Go to Product

MEMS static response acceleration sensor
P81AS

High-sensitivity, low-noise accelerometers for measuring static acceleration and low-frequency vibration

Datesheet Go to Product

Range

±2g

±5g

±10g

±20g

±30g

±50g

±100g

±500g

Nonlinearity

±1%FSO

Output

Amplified Voltage

Sensitivity

1000mV/g

400mV/g

200mV/g

100mV/g

67mV/g

40mV/g

20mV/g

4mV/g

MEMS static response acceleration sensor

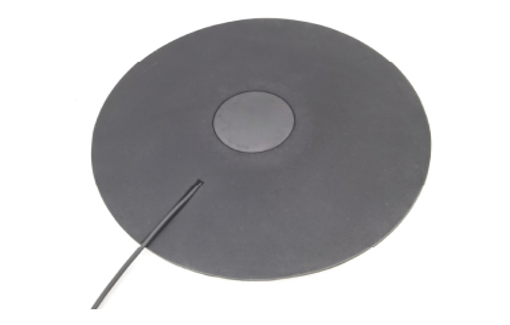

P85AT

5Kg impact limit
Inertia/Low Frequency Response
Range: 2~200g

Datesheet Go to Product

MEMS static response acceleration sensor
P85AT

Static Response MEMS Variable Capacitance Accelerometer for Static, Low Frequency Measurements

Datesheet Go to Product

Range

±2g

±5g

±10g

±200g

Nonlinearity

±1%FSO

Output

Amplified Voltage

Sensitivity

1000mV/g

400mV/g

200mV/g

10mV/g

MEMS static response acceleration sensor

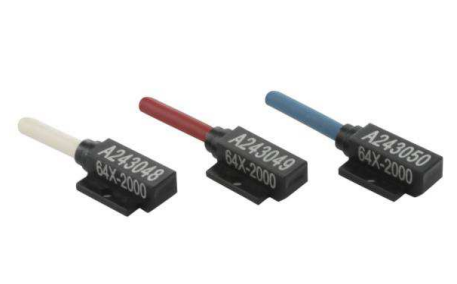

64X

IP65 environmentally sealed
10000 g Overload Shock Protection
Standard <20mV ZMO

Datesheet Go to Product

MEMS static response acceleration sensor
64X

Crash acceleration sensor according to SAE J211/J2570, ISO 6487, with integrated cable

Datesheet Go to Product

Range

±50g

±200g

±500g

±2000g

±6000g

Nonlinearity

±0.7%FSO

Output

Piezoresistive

Sensitivity

1.2-3mV/g

0.6-0.12mV/g

0.3-0.6mV/g

0.12-0.3mV/g

0.05-0.12mV/g

MEMS static response acceleration sensor
40B

Silicon piezoresistive
Range:±25g~±2,000 g
Temperature range:-20°C~+80°C

Datesheet Go to Product

MEMS static response acceleration sensor
40B

Crash Acceleration Sensor with Integrated Cable

Datesheet Go to Product

Range

±25g

±100g

±250g

±500g

±1000g

±2000g

Nonlinearity

±1%FSO

Output

Piezoresistive

Sensitivity

6mV/g

1.5mV/g

0.6mV/g

0.3mV/g

0.15mV/g

0.075mV/g

Universal accelerometer

Connector side out
Vibration monitoring
The G52AS series products are CALTROP...

Datesheet Go to Product

Not exactly what you are looking for?

We offer products but can also help you with acustomized design or a complete measurement solution

Not exactly what you are looking for?

We offer products but can also help you with acustomized design or a complete measurement solution

MEMS static response acceleration sensor
40A

Silicon piezoresistive
Range: ±25g~±2,000g
2-10 Vdc excitation voltage

Datesheet Go to Product

MEMS static response acceleration sensor
40A

Crash Acceleration Sensor with Integrated Cable

Datesheet Go to Product

Range

±25g

±100g

±250g

±500g

±1000g

±2000g

Nonlinearity

±1%FSO

Output

Piezoresistive

Sensitivity

6mV/g

1.5mV/g

0.6mV/g

0.3mV/g

0.15mV/g

0.075mV/g

MEMS static response acceleration sensor
52M30

Range: ±50 g to ±6,000 g
2-10 Vdc excitation voltage
Lightweight: 0.5 g

Datesheet Go to Product

MEMS static response acceleration sensor
52M30

Crash acceleration sensor, SAE J211/J2570 compliant, with integrated cable

Datesheet Go to Product

Range

±50g

±200g

±500g

±2000g

Nonlinearity

±1%FSO

Output

Piezoresistive

Sensitivity

1.2-3mV/g

0.6-1.2mV/g

0.3-0.6mV/g

0.12-0.3mV/g

MEMS static response acceleration sensor
P80AS

5Kg impact resistance
Ultra-low noise
Range: 2~500g

Datesheet Go to Product

MEMS static response acceleration sensor
P80AS

Static Response MEMS Variable Capacitance Accelerometer, High Frequency, Ultra Low Noise

Datesheet Go to Product

Range

±2g

±5g

±10g

±20g

±30g

±50g

±100g

±500g

Nonlinearity

±1%FSO

Output

Amplified Voltage

Sensitivity

1000mV/g

400mV/g

200mV/g

100mV/g

67mV/g

40mV/g

20mV/g

4mV/g

Hope to receive a quotation

If you have any questions about our products and need a quotation, or if you need advice on measurements, please contact us! We are happy to help and advise you.
