PRODUCTS Sensors Draw wire sensor

Draw wire sensor

Draw wire sensors measure linear motion using highly flexible steel cables.

Learn More Price Inquiry

Filters

Hide Filters

Reset Filters

Range


                            ≤2mm

                            3mm~15mm

                            16mm~25mm

                            26mm~50mm

                            51mm~100mm

                            101mm~250mm

                            251mm~500mm

                            501mm~1000mm

                            1001mm~5000mm

                            5001mm~15000mm

                            ≥15001mm

Accuracy

Output signal


                            0~10V

                            0~20mA

                            4~20mA

                            Incremental Encoder

                            Voltage Divider

Protection level

Housing Material


                            Aluminum

                            Aluminum

                            Polycarbonate

                            Stainless Steel

You are filtering:

Products Found（13）

Tile

List

Draw wire sensor
PT420

Travel range: 0-2 to 0-100 inches
Operating temperature range: -40 to 90°C
Protection rating: IP50

Datesheet Go to Product

Draw wire sensor
PT420

The PT420 series 4-20mA classic string pot is available with full-scale measurement ranges from 2 to 100 inches and its feedback signal is linearly proportional to the position of a traveling stainless-steel extension cable.

Datesheet Go to Product

Range

0~50.8mm to 0~1270mm

Accuracy

±0.28%

±0.15%

±0.18%

Output signal

4~20mA

Protection level

IP50

Draw wire sensor
PT1A

Travel range: 0-2 to 0-50 inches
Operating temperature range: -40 to 90°C
Protection rating: IP65

Datesheet Go to Product

Draw wire sensor
PT1A

The PT1A series voltage divider PT1 string pot uses a high cycle plastic-hybrid potentiometer for full-scale measurement ranges from 2 to 50 inches.

Datesheet Go to Product

Range

0~50.8mm to 0~1270mm

Accuracy

±0.25%

±0.1%

Output signal

Voltage Divider

Protection level

IP65

Draw wire sensor
PT101

Travel range: 0-2 to 0-100 inches
Operating temperature range: -40 to 90°C
Protection rating: IP50

Datesheet Go to Product

Draw wire sensor
PT101

The PT101 series voltage divider IP50 classic string pot offers full stroke measurement up to 100 inches and has thousands of applications.

Datesheet Go to Product

Range

0~50.8mm to 0~2540mm

Accuracy

±0.25%

±0.1%

Output signal

Voltage Divider

Protection level

IP50

Draw wire sensor
MTA

Travel range: 0-3 to 0-5 inches
Operating temperature range: -55 to 100°C
Protection rating: IP55

Datesheet Go to Product

Draw wire sensor
MTA

The MTA is part of a family of small pull cord displacement transducers ideal for short travel test and control applications in confined spaces.

Datesheet Go to Product

Range

0~76.2mm to 0~127mm

Accuracy

±0.4%

Output signal

Voltage Divider

Protection level

IP55

IP50

Draw wire sensor
DPT250

Travel range: 0-25 to 0-50 inches
Operating temperature range: -20 to 70°C
Protection rating: IP55

Datesheet Go to Product

Draw wire sensor
DPT250

The DPT250 series cable extension transducer offers a highly accurate incremental encoder output signal that can provide both position and velocity information.

Datesheet Go to Product

Range

0~625mm to 0~1250mm

Accuracy

±0.01in

±0.02in

±0.25mm

±0.5mm

Output signal

Incremental Encoder

Protection level

IP55

Draw wire sensor
PT1MA

Stroke range: up to 50 inches [1270mm
Operating temperature range: -17~90°C
Protection grade: IP65

Datesheet Go to Product

Draw wire sensor
PT1MA

The PT1MA series 4-20mA PT1 string potentiometer offers full stroke measurement range up to 50 inches to precise measure absolute linear position.

Datesheet Go to Product

Range

0~50.8mm to 0~1270mm

Accuracy

±0.28%

±0.18%

±0.15%

Output signal

0~20mA

4~20mA

Protection level

IP65

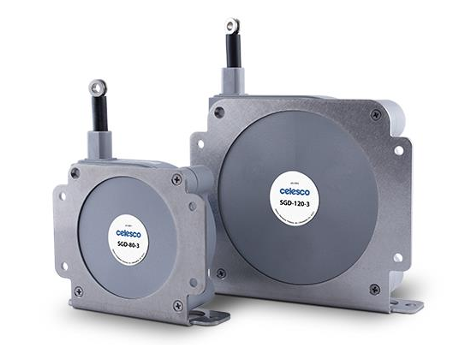

Draw wire sensor
SGD

Stroke range: 0~2032mm, 0~3048mm
Operating temperature range: -18~71℃
Protection grade: IP67

Datesheet Go to Product

Draw wire sensor
SGD

Suited for IP67 (wet) environments, the SGD provides a user-selectable 4-20mA or 0-10VDC absolute linear position signal over an 80-inch or 120-inch full stroke range option.

Datesheet Go to Product

Range

0~2032mm to 0~3048mm

Accuracy

±0.35%

Output signal

0~10V

4~20mA

Protection level

IP67

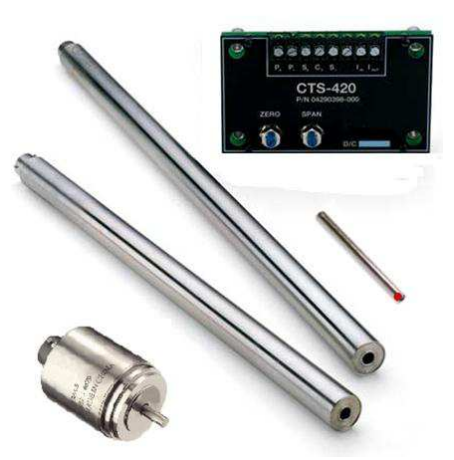

Draw wire sensor
CTS—420

Stroke range: 6.35~254mm
Operating temperature range: -55~150℃
Protection grade: IP68

Datesheet Go to Product

Draw wire sensor
CTS—420

The CTS-420 Series is a 2-wire current loop position transmitter system especially suited to measurements in process industries.

Datesheet Go to Product

Range

0~6.35mm to 0~254mm

Accuracy

±0.5%

±1.5%

Output signal

4~20mA

Protection level

IP68

Draw wire sensor
SP

Stroke range: 0~1270mm
Operating temperature range: -40~70℃
Protection grade: IP50

Datesheet Go to Product

Draw wire sensor
SP

Easy to use and flexible, this compact pull cord displacement transducer with "voltage divider" output has a measuring range of up to 50 inches.

Datesheet Go to Product

Range

0~120mm to 0~1270mm

Accuracy

±0.25%

Output signal

Voltage Divider

Protection level

IP50

Universal accelerometer

Connector side out
Vibration monitoring
The G52AS series products are CALTROP...

Datesheet Go to Product

Not exactly what you are looking for?

We offer products but can also help you with acustomized design or a complete measurement solution

Not exactly what you are looking for?

We offer products but can also help you with acustomized design or a complete measurement solution

Draw wire sensor
SM

Stroke range: 0-635mm
Operating temperature range: -18~71℃
Protection grade: IP50

Datesheet Go to Product

Draw wire sensor
SM

With its ultra-compact design, the SM1 is a perfect solution for confined spaces.

Datesheet Go to Product

Range

0~60mm to 0~635mm

Accuracy

±0.25%

Output signal

Voltage Divider

Protection level

IP50

Draw wire sensor
SG

Stroke range：2032mm,3048mm
Operating temperature range:-40~71℃
Protection grade: IP50

Datesheet Go to Product

Draw wire sensor
SG

The SG1 provides absolute linear position up to a 10-ft. stroke range.

Datesheet Go to Product

Range

0~2032mm to 0~3048mm

Accuracy

±0.35%

Output signal

Voltage Divider

Protection level

IP50

Draw wire sensor
MT3A

Stroke range: 0~1270mm
Operating temperature range: -40~120℃
Protection grade: IP67

Datesheet Go to Product

Draw wire sensor
MT3A

The MT3A Mini IP-67 Series String Potentiometer is the solution for high-acceleration test applications in potentially wet environments.

Datesheet Go to Product

Range

0~50 inches

Accuracy

±0.25%

±0.15%

Output signal

Voltage Divider

Protection level

IP67

Draw wire sensor
MT2A

Stroke range: 0~1270mm
Operating Temperature Range: -55~125°C
Protection grade: IP50

Datesheet Go to Product

Draw wire sensor
MT2A

The MT2A Series 30-inch Voltage Divider Compact Cord Displacement Transducer is a family of high-accuracy, compact, ruggedized cord displacement transducers designed for test applications.

Datesheet Go to Product

Range

0~76.2mm to 0~1270mm

Accuracy

±0.15%

±0.20%

Output signal

Voltage Divider

Protection level

IP50

Hope to receive a quotation

If you have any questions about our products and need a quotation, or if you need advice on measurements, please contact us! We are happy to help and advise you.
