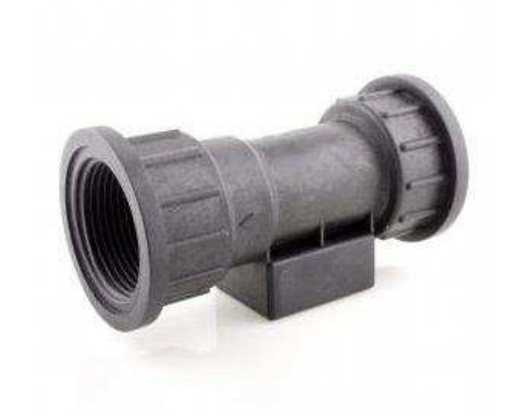

Insertion type flow meter-FS—51
Product Description
The FS51 is a SPST flow switch that can be mounted on any axis. It is designed with 1.25" BSP process connections.
Key Features
Rugged high grade Noryl
Minimum pressure drop
Operates from a small head of waterMount in any axis
Suitable for water and air flow switching
1¼” BSP female threads
Suitable for hot and cold potable water
Reed Switch Reliability (UL File E153493)
Meets UL 94-HB flammability rating
Easy installation
Applications
Mains water control
Power shower
Central heating systems
Circulation pump protection
Cooling systems
Information & Quotation
Request a quotation today or leave your details to recieve moreinformation from one of our experts
Specification
| Product Type Features | |
| Flow Switch Product Type | FS |
| Electrical Characteristics | |
| Maximum Switching Current (A) | 3 |
| Body Features | |
| Flow Switch Housing Material | Noryl |
| Usage Conditions | |
| Operating Temperature Range | -30 - 85℃[-22 - 185℉] |
| Other | |
| Fitting | 1 1/4" BSP |
| Flow Switch on Rate | 1.5 – 2 |
