Product Description

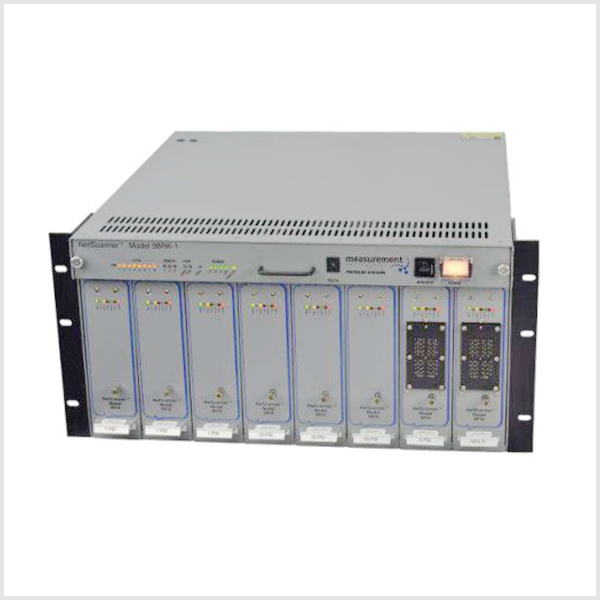

The Model 98RK-1 Scanning Valve Interface Rack and the Model 9816 Rackmount Intelligent Pressure Scanning Valve. This combination scans up to 128 pneumatic measurements in turbomachinery testing. 98RK-1 Enhanced Rack utilizes high-performance switches that allow the 9816 Scanner to communicate with the host computer via a 10/100/1G Base T Ethernet interface that supports auto-negotiation. This rack also provides power and pneumatic connections for up to eight 9816 scanning valves encapsulated internally. In addition, the 98RK-1 can provide power and pneumatic connections for up to three external NetScanner system components such as Model 9022 for all-media pressure measurement, Model 9032 for high-accuracy barometric or reference pressure measurement, or Model 9146-T/R for thermocouple/RTD measurement.

Key Features

±0.05% Accuracy
10/100/1G Base T Ethernet - TCP & UDP
Pressure range up to 850 psi

Applications

Wind Tunnel Testing
Turbomachinery Testing
