Product Description

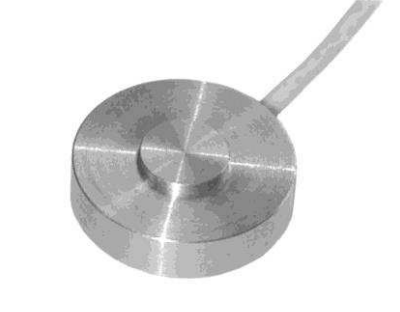

The XFL212R series is an extraordinarily thin miniature load cell with a temperature compensation module integrated into the output cable. This design allows TE CONNECTIVITY to manufacture extremely small sensors without sacrificing thermal zero and sensitivity performance. The XFL212R measures strain during compression in static and dynamic applications. Unlike sensors with flat force application surfaces, the XFL212R incorporates a spherical load button, which assures more precise loading and in return more accurate measurements. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes its performance at low ranges and frequencies. The sensor is available in aluminum alloy or stainless steel, depending on the full scale range and can withstand considerable overloads.

Key Features

0-5 to 0-500N [0-1 to 100 lbf]
Compression
Extremely Flat 3,5 mm [0.14"]
Diameter Only 12 mm [0.49"]
Integrated Spherical Load Button
For Static and Dynamic Applications
Small size
High Stiffness
Other designs available on request

Applications

Strain table measurement
Micro component assembly tools
Mechanical switches control
Laboratory
Robotic
