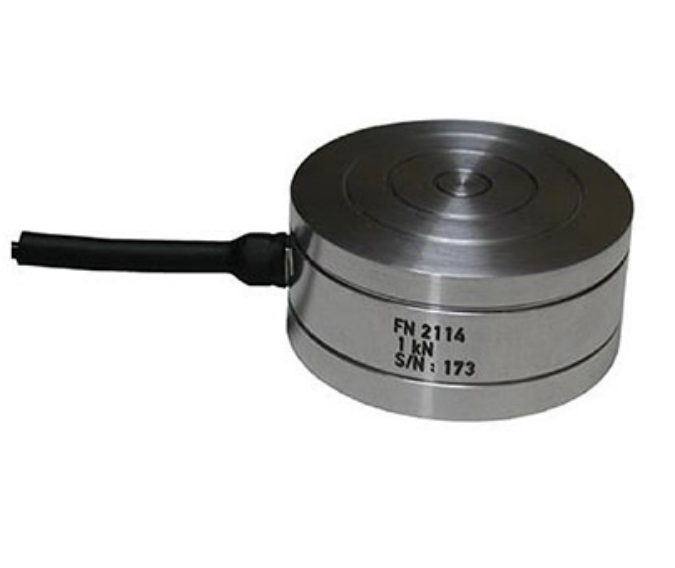

Spoke force sensors-FN2114
Product Description
The FN2114 load cell has been developed for pedal load testing. Its size allows the sensor to be easily installed on the pedals of any vehicle or a fatigue/endurance test bench. Since the forces to be investigated on the brake, clutch or accelerometer pedals are different, and vary from a small car to a heavy goods vehicle, TE CONNECTIVITY offers different measurement ranges as standard. With an internal mechanical decoupling system, accuracy is 1% F.S., regardless of the point of force application. Integrated amplifier for high level output is optionally available for all ranges. A similar pedal load cells with thicker dimension exists as model FN2570.
Key Features
Compression only
Integrated amplifier optional
Rugged design
Applications
On-board vehicle equipment
Test bench equipment
Laboratory and research
Information & Quotation
Request a quotation today or leave your details to recieve moreinformation from one of our experts
Specification
| Product Type Features | |
| Force Load Cell Sensor Type | Automotive Load Cells |
| Electrical Characteristics | |
| Full Scale Range (Newton) | 200 - 2500 |
| Full Scale Range (lbf) | 40 - 500 |
| Force Load Cell Supply Voltage (VDC) | 10, 10 - 30, ±15 |
| Signal Characteristics | |
| Output Signal | ±2 mV/V, ±2 V, ±5 V, ±5 V |
| Usage Conditions | |
| Operating Temperature Range (°C) | -20 - 80 |
| Operating Temperature Range (°F) | -4 - 176 |
| Other | |
| Force Direction | Compression |
| Protection Index | IP50 |
| Force Load Cell Accuracy (% of FS) | ±1 |
