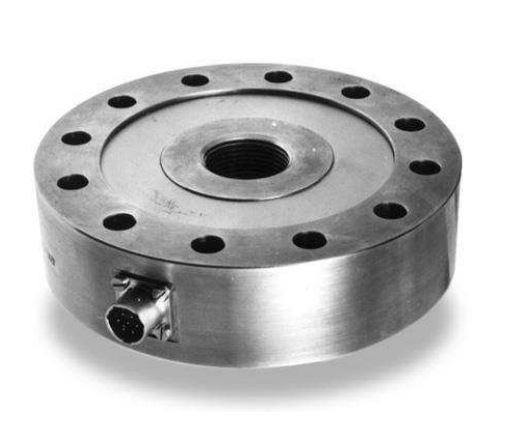

Spoke force sensors-FN3000
Product Description
The FN3000 measures tension and compression in standard ranges from 0-10 kN to 0-1000 kN. The mechanical design and gauge placement minimizes transverse effects. Depending on the range, the FN3000 is constructed in aluminium alloy or stainless steel and is available with numerous options. It is suitable for test bench applications and used in many hostile environments and can be customized for increased protection.
Key Features
Heavy duty Pan-cake load cell
Standard ranges 10 to 1000 kN [2 to 200 klbf]
Very high stability
Aluminum or Stainless steel
High IP protection available
High Level Output Model with Integrated Amplifier
Static and dynamic applications
Tension and Compression
Linearity 0.1% F.S.
Integrated Amplifier optional
IP65 optional
Applications
Process control equipment
Weighing calibration tool
Fatigue tests benches
Hydraulic press regulation
Laboratory and Research
Information & Quotation
Request a quotation today or leave your details to recieve moreinformation from one of our experts
Specification
| Product Type Features | |
| Force Load Cell Sensor Type | Force Load Cells |
| Electrical Characteristics | |
| Full Scale Range (Newton) | 0 - 10000, 0 - 100000, 0 - 1000000, 0 - 200000, 0 - 25000, 0 - 50000, 0 - 500000 |
| Full Scale Range (lbf) | 0 - 11200, 0 - 112400, 0 - 2200, 0 - 224800, 0 - 22500, 0 - 44960, 0 - 45000, 0 - 5600 |
| Force Load Cell Supply Voltage (VDC) | 10, 10 - 30, ±15 |
| Signal Characteristics | |
| Output Signal | ±2 mV/V, ±2 V, ±5 V, ±5 V |
| Usage Conditions | |
| Operating Temperature Range (°C) | -20 - 80 |
| Operating Temperature Range (°F) | -4 - 176 |
| Other | |
| Force Direction | Compression, Tension |
| Protection Index | IP50 |
| Force Load Cell Accuracy (% of FS) | ±0.1 |
| Zero Shift in CTR (%FS/°C) | ±0.5 |
| Sensitivity Shift (%FS/°C) | ±1/50 |
