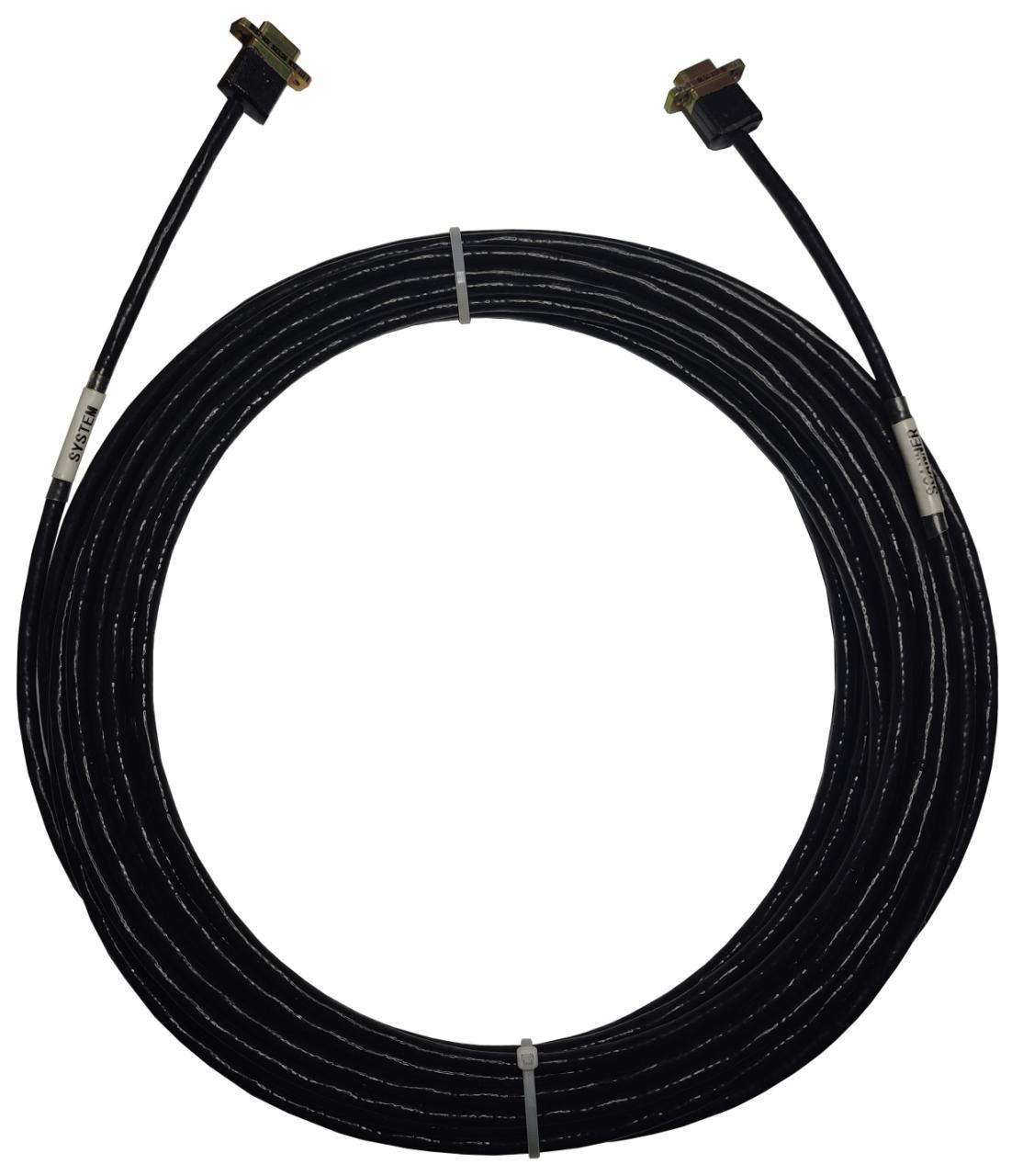

OPCY Cable

Product Description

The Y cable connects the 8476 line to the mSDI. it acts as a distributor to extend the RPS function to two independent mSDIs. excitation feedback provides the precise scanner excitation required maintains this cable design. the two legs of the Y cable can be of different lengths, with the total length limited to 6 ft. (2 m can be specified as well). the Y cable can also be used as a distributor for the RPS function.

Key Features

Extends RPS functionality to two independent mSDIs
Excitation feedback
The two lines can be of different lengths

Applications

Connects to 8476 lines and mSDI
Provides the precise scanner excitation required
