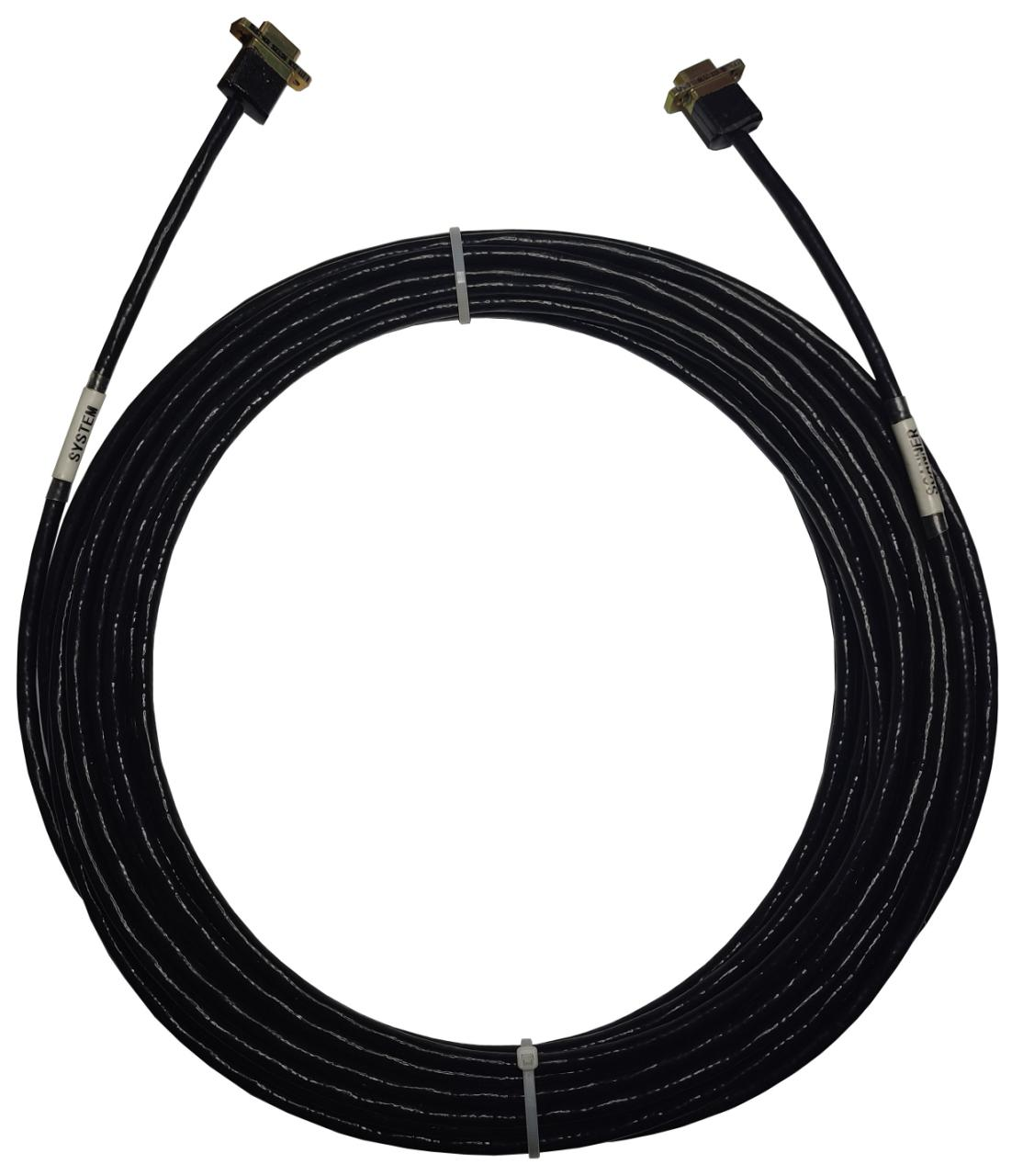

OSCB Cable
Product Description
The OSCB connects the ESP pressure scanner to the mSDI scanner interface. It is available in lengths ranging from 6 inches to 150 feet. Any combination of cable lengths can be used as RPS automatically adjusts the system's electrical load and excitation of the pressure scanners on a per-scanner basis.The OSCB is an improved version of the PSCB cable with specific shielding and pin placement to minimize power to signal interference. The gender of the connector has been changed at mSDI to prevent accidental reversal of the cable while maintaining standard ESP/MicroScanner pressure scanner connector compatibility.The PSCB cable can be modified to be functionally equivalent to the OSCB cable, and its connector length can be changed to 90 feet. This OSCB cable has an additional shield connection at the scanning end that improves performance when the length exceeds 90 feet.
Key Features
Low Noise Shielded Cables
Miniature DB15 Connectors
Fastening Screws
Applications
mSDI to ESP Connections
Adapter Cable
Information & Quotation
Request a quotation today or leave your details to recieve moreinformation from one of our experts
Specification
| Type | ||||
| OSCB-ABBBB0000 | Optimus System mSDI to Scan Valve Cable | |||
| OSCB- | A | BBBB | 0000 | |
| Material | ||||
| PVC(standard) | 0 | |||
| Teflon(polytetrafluoroethylene) | 1 | |||
| Cable Length(≤45 米) | ||||
| 20 cm | 0020 | |||
| 1 m | 0100 | |||
| …… | …… | |||
| 45 m | 4500 | |||
| NOTE: Maximum length of OSCB cable for select Gen2 DTC pressure scanning valves is 45 meters; maximum length for other scanning valves is 9 meters. | ||||
